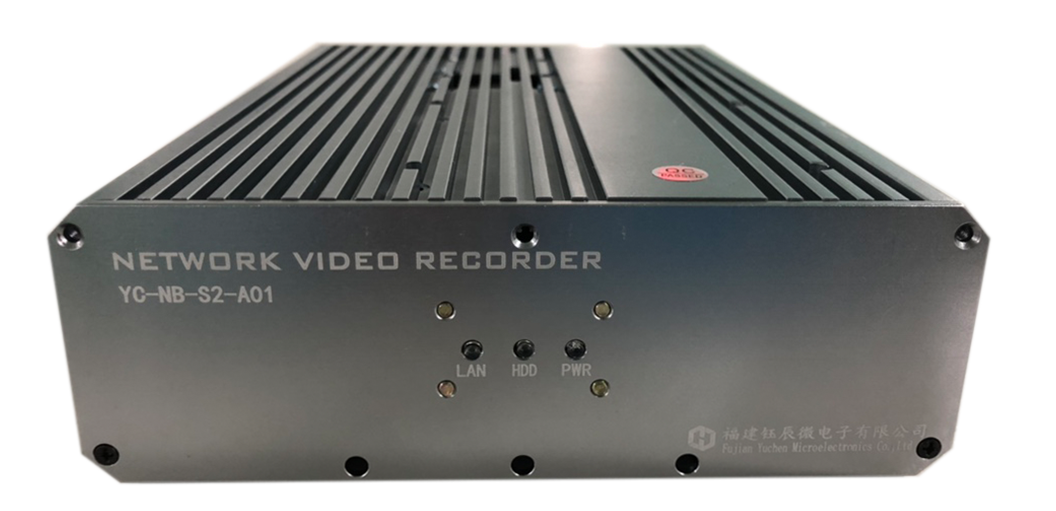

16 CHANNEL NVR
16 CHANNEL NVR
1. Characteristics
- Maximum support for preview, storage and playback of 8 MP HD network video
- Support centralized management of IP devices, including IP device parameter configuration, information import/export and upgrade, and other functions
- Support H.265 video encoding code stream and support mixed access of Smart265, H.265 and H.264 IP devices
- Support HDMI and VGA homologous output, support HDMI interface 4K ultra high definition display output, support VGA interface HD 1080p display output
- Support one-click to add IP devices and one-click to open the recording function
- Support video files to be packaged by time
- Support intelligent search, playback and backup functions to effectively improve video search and playback efficiency
- Support instant playback function, play back the current recording of the specified channel under the preview screen, and does not affect other channel previews
- Supports up to 16 channels simultaneously playback and multi-channel synchronous playback
- Supports hard disk quota and hard disk group storage mode, and can allocate different video storage capacity or period to different channels
- Support 2 SATA interfaces
- Support network detection (network flow monitoring, network packet capture, network resource statistics)
- Support remote zero channel preview, use 1 channel zero channel encoded video, preview multi-channel segmented video images, fully capture monitoring image information while saving network transmission bandwidth
| Video/audio input | Network video input | 16 channels | |
| Network video access bandwidth | 160Mbps | ||
|
Video/audio output |
HDMI output |
1 channel， resolution：4K（3840×2160）/30Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz，1024×768/60Hz |
Function support,withou interface on the shell. |
| VGA output |
1channel，homologous output with HDMI， resolution：1920×1080/60Hz， 1280×1024/60Hz，1280×720/60Hz，1024×768/60Hz |
||
| Audio output | 1 channel，RCA interface（line level，impedance：1kΩ） | ||
| Video/audio encoding/decoding | Simultaneously playback | 16 channel | |
|
Record management |
Record mode | Manual record、timing record、event record、motion detection record、alarm record、motion detection /alarm record、motion detection& alarm record | |
| Playback mode | Instant playback,regular playback,timing playback,label playback,intelligent playback,external documents playback,log playback | ||
| Backup mode | Regular backup,event backup,record editing backup | ||
|
HDD |
type | 2 SATA interfaces | |
| Maximum capacity | 6TB HDD per interface | ||
|
External interface |
Audio intercom input | 1个，RCA interface（line level：2.0Vp-p，impedance：1kΩ） |
Function support,without interface on the shell |
| Network interface | 1 RJ45 10M/100M/1000M adaptive Ethernet pots | ||
| USB | 1个USB 2.0（front panel），1个USB 2.0（back panel） | ||
|
Network management |
protocol | UPnP（plug and play）、NTP（network time protocol）、SADP、PPPoE、DHCP | |
|
Others |

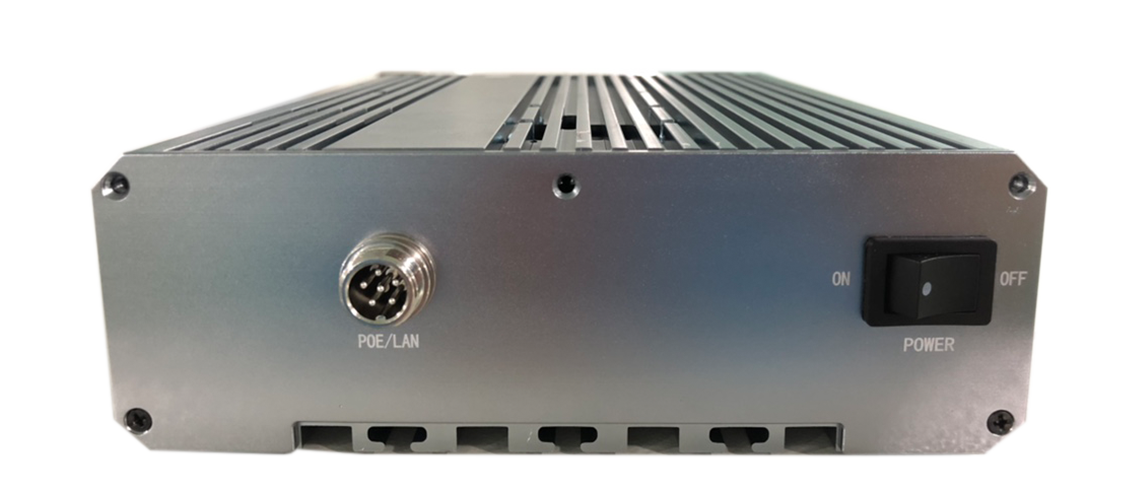

Power supply | POE aviation head interface 12V power supply | |
| size | 158*188*53.5mm | ||
| Power consumption(withou HDD) | ≤15W | ||
| Working temperature | -10℃--＋55℃ | ||
| Working humidity | 10％--90％ |
