PTZ camera
1. Product overview

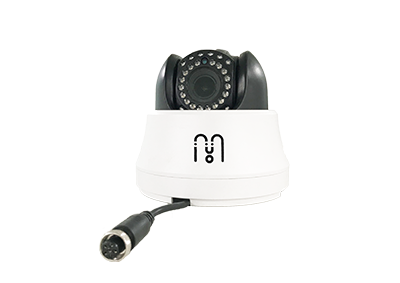

YC-PC-A01 Our company specializes in the harsh environment of the car, using industrial grade raw materials to design and develop independently. The special details are designed for the vehicle environment, wide voltage support, with extraordinary quality and performance
2. Parameters
| Name | PTZ camera |
| Model No. | YC-PC-A01 |
| Connection | 6-core aviation head |
| S/N | ≥60db |
| IR LED | 5mm |
| AGC | Auto |
| W/B | Auto |
| Power supply | 12v/500mA |
| Resolution | 1.3MP |
| Pixel | 1920*1080 |
| Sensor | 1/2.8” Progressive Scan CMOS |
| Horizontal angle | 100~25 degree |
| Horizontal Range | 350 degree |
| Horizontal Speed | Horizontal keying speed: 0.1 degrees to 60 degrees / s, horizontal preset point speed: 50 degrees / s |
| Vertical Range | 0~90 degree |
| Vertical Speed | Vertical keying speed: 0.1 degrees to 50 degrees / s, vertical preset point speed: 50 degrees / s |
| Zooming | Support |
| Size | Φ137*126mm |
| Working temperature | -10℃～65℃ |
| Working humidity | <90%（40℃ No condensation） |
